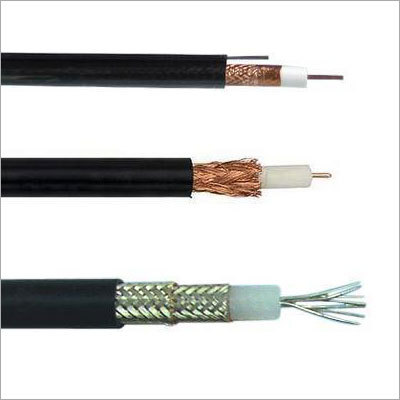

Co Axial Cable

Co Axial Cable Specification

Conductor Type
Single Solid or Stranded Core

No Of Core
Single Core

Connector Type
F-Type, BNC (optional)

Temperature
-20C to +70C

Cable Length
Standard 90-180 m (custom on request)

Product Type
Co-Axial Cable

Material
PVC, Copper

Function
Transmission of audio, video and digital signals with minimal interference

Usage
Indoor and outdoor communication, cable TV, CCTV, satellite, broadband

Voltage Surge
Up to 600 V

Frequency (MHz)
Up to 3,000 MHz

Rated Voltage
300 V

Rated Current
Up to 2.5 A

Cable Capacity
75 Ohms Impedance

Insulation Material
Polyethylene (PE), PVC

Conductor Material
Copper

Length
Available in 90 m, 180 m, and custom lengths

Size
As per requirement (Standard RG6, RG59, RG11 sizes available)

Color
Black, White, Grey

Diameter
Approx. 6 mm (varies with type)

Application
Cable TV distribution, CCTV installation, computer networking, satellite communication

Outer Sheath Color
Custom (on demand)

Dielectric Strength
High

Surface Finish
Smooth and Glossy

Tensile Strength
Excellent

RoHS Compliance
Yes

Jacket Type
UV resistant PVC jacket

Flame Retardant
Yes

Signal Attenuation
Low

Shielding
Aluminium foil and braided shield

Packaging Type
Roll/Packing box

Co Axial Cable Trade Information

Payment Terms
Cash on Delivery (COD), Telegraphic Transfer (T/T), Paypal, Cheque

Main Export Market(s)
Central America, Asia

Main Domestic Market
All India

About Co Axial Cable

Our valued customers can purchase a qualitative range of Co Axial Cables from us at very cost effective prices in different standard as well as customized specifications as per demands. The offered products are carefully designed and developed by making use of finest quality raw materials with the help of latest tools and technology, and having large number of striking features that ensure their optimum performance for longer period of time.

Attributes of our Co Axial Cables

Strong Structure
Optimum Finish
Accurate Dimension
Very High Strength
Affordable Rates
Easy & Strong Installation
Etc.

Superior Signal Performance

Equipped with aluminium foil and braided shielding, this cable offers low signal attenuation and high dielectric strength, ensuring clear transmission for audio, video, and digital signals. The UV-resistant PVC jacket and smooth glossy finish make it suitable for demanding and diverse applications without compromising signal quality.

Versatile Applications and Customization

Designed for cable TV distribution, CCTV installation, satellite communication, and computer networking, this coaxial cable is available in standard RG6, RG59, RG11 sizes, and custom configurations. Connector options (F-Type, BNC) and custom outer sheath colors let users tailor the product to specific requirements for indoor or outdoor use, maximizing deployment flexibility.

Durable Construction for Safety

This cable features flame-retardant, RoHS-compliant materials, with excellent tensile strength and resistance to voltage surges up to 600 V. Its polyethylene and PVC insulation withstands temperatures from -20C to +70C. Packaged in rolls or boxes, it maintains safety and reliability across varied installation conditions.

FAQs of Co Axial Cable:

Q: How does the UV-resistant PVC jacket benefit outdoor installations?

A: The UV-resistant PVC jacket protects the cable from sunlight degradation, making it ideal for outdoor installations where exposure to harsh weather and ultraviolet rays can compromise cable performance and lifespan.

Q: What shielding options does this coaxial cable provide for signal interference prevention?

A: It features a combination of aluminium foil and a braided shield, which together minimize external electromagnetic interference and maintain low signal attenuation, ensuring clear and uninterrupted transmission.

Q: Where can this cable be used in terms of applications?

A: This cable is suited for cable TV distribution, CCTV system installations, computer networking, satellite communication, and broadband setups, both indoors and outdoors, providing wide utility across several communication industries.

Q: What is the process for requesting custom cable lengths or sheath colors?

A: Custom cable lengths and outer sheath colors can be specified at the time of ordering. The supplier offers flexibility to adjust specifications, including diameter, connector type, and packaging, based on your unique project requirements.

Q: When is flame retardant and RoHS compliance most advantageous for users?

A: Flame retardant and RoHS compliance are especially beneficial in sensitive environments such as crowded buildings or data centers, where these safety features reduce fire risks and adhere to environmental standards.

Q: How does the cables excellent tensile strength contribute to installation?

A: The cables superior tensile strength ensures durability during installation, reducing the risk of stretching or breaking, which is critical for both surface-mounted and concealed wiring projects.

Q: What are the benefits of choosing a cable with low signal attenuation and high dielectric strength?

A: Low signal attenuation enables longer cable runs without quality loss, while high dielectric strength allows the cable to handle higher voltages safely, enhancing performance and reliability in demanding communication systems.
