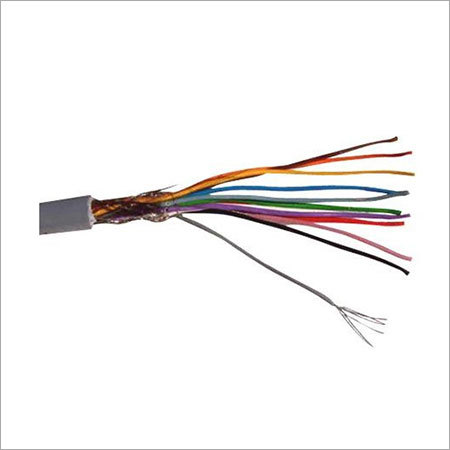

Shielded Cable

Shielded Cable Specification

Temperature
-20C to +80C

Connector Type
Bare ends (custom connectors available)

Conductor Type
Stranded

Cable Length
Rolls of 90m, 100m or custom

No Of Core
2 to 24 cores

Product Type
Shielded Cable

Material
Copper, PVC

Function
Electromagnetic interference reduction and signal transmission

Usage
Power and signal transmission in sensitive electronics equipment

Voltage Surge
Withstands up to 2 kV

Frequency (MHz)
DC to 100 MHz

Rated Voltage
300/500 V

Rated Current
Up to 10 A

Cable Capacity
Flexible, multi-stranded

Insulation Material
PVC / XLPE

Conductor Material
Tinned / Bare Copper

Length
Available in custom lengths up to 100 meters

Size
0.5 sqmm to 4 sqmm

Color
Gray, Black, Blue (custom colors available)

Diameter
Varies by core and size (typically 5 mm to 20 mm)

Application
Instrumentation, Industrial Automation, Communication, Data Transmission

Shield Coverage
85% to 95%

Packaging
Coil, Drum, or as required

Environmental Resistance
Oil, Chemical, and UV Resistant

Mechanical Flexibility
High

Insulation Thickness
0.4 mm to 0.8 mm

Bending Radius
Minimum 10 x Cable Diameter

Flame Resistance
Complies with IEC 60332-1

Jacket Material
Flexible, Flame Retardant PVC

Shield Type
Aluminum Mylar with Tinned Copper Braid

Outer Sheath Color
Grey / Black (other colors on request)

Shielded Cable Trade Information

Payment Terms
Cash on Delivery (COD), Telegraphic Transfer (T/T), Cheque

Main Export Market(s)
Asia

Main Domestic Market
All India

About Shielded Cable

Our company offers a wide variety of Shielded Cables, which are utilized in commercial complexes, offices, housing societies, residences, and studios for signal integrity and getting confidence in audio and video transmissions. These are high in demand by our existing customers due to their high conductivity, fine finish, easy installation etc. Furthermore, customers can easily purchase them from us at very pocket-friendly prices in different sizes and specifications.

Attributes of our Shielded Cables

Optimum Finish
Hard Structure
Excellent Conductivity
High Longevity
High Temperature Resistance
Cost Effective Rates
Etc.

Superior Shielding for Sensitive Applications

With an aluminum mylar foil and tinned copper braid, this cable achieves high shield coverage (8595%), minimizing electromagnetic interference. Its design ensures clear and reliable signal transmission, which is essential for power, data, and control cabling in demanding environments like instrumentation, communication, and industrial automation.

Flexible, Flame-Retardant, and Durable Construction

The cables flexible construction and flame-retardant PVC or XLPE insulation meet IEC 60332-1 requirements, ensuring safety even under challenging conditions. Its tough jacket resists oils, chemicals, and UV rays, making it suitable for both indoor and outdoor installations. The high mechanical flexibility and minimum 10x bending radius make routing the cable easy.

Custom Solutions for Diverse Industries

Available in a range of sizes, core counts (2 to 24), colors, and lengths up to 100 meters, this cable can be tailored to your specific project needs. Whether used in control panels, data systems, or industrial machinery, its adaptability and multiple packaging options (coil, drum, custom) ensure efficient deployment and maximum convenience.

FAQs of Shielded Cable:

Q: How does the aluminum mylar with tinned copper braid shield benefit my application?

A: The combination of aluminum mylar and tinned copper braid provides superior shielding against electromagnetic interference (EMI), ensuring your signals remain clear and reliable in environments with high electrical noise.

Q: What types of environments is this cable suitable for?

A: This cable is designed to withstand harsh conditions, including exposure to oil, chemicals, and UV radiation, making it suitable for both indoor and outdoor applications in industrial automation, instrumentation, and communication.

Q: When should I choose a flexible, flame-retardant shielded cable?

A: Choose this type of cable when you require high mechanical flexibility, need reliable EMI protection, and require compliance with flame-retardant standards such as IEC 60332-1common in sensitive electronic equipment and control systems.

Q: Where can I use this shielded cable in my projects?

A: This cable is ideal for power and signal transmission in control panels, data transmission lines, industrial automation systems, and communication setups where EMI reduction is essential.

Q: What is the process for ordering custom lengths or colors?

A: You can specify your required length (up to 100 meters) and choose from standard or custom colors. Options for packaging include coils, drums, or as per customer requirements. Distributors in India provide tailored solutions to fit your particular needs.

Q: How does the cable ensure flame resistance and safety?

A: The cables PVC jacket meets IEC 60332-1 flame resistance standards, providing protection in case of fire and ensuring greater safety in critical electronic and industrial environments.

Q: What are the benefits of using this cable for sensitive electronics and signal transmission?

A: By reducing electromagnetic interference and offering robust mechanical flexibility, the cable delivers reliable data transmission and durability, minimizing signal loss and maintenance in sensitive and complex installations.
